JVC DT-U31PROE Multi-interface native 4K HDR 31.1″ studio monitor
The new DT-U Series of 4K displays offers a high-quality solution for 4K monitoring. The DT-U31PROE 31.1″ 4096×2160 resolution model features multiple 4K interfaces, supporting 4x 3G-SDI quad link input (both quad and 2SI) and 4K60p HDMI 2.0 input, with built-in 3D LUT auto-calibration. It has a wide colour range and HDR signal support, along with built-in front panel USB colour calibration sensor support, IP remote control, measurement tools and a future SFP slot.
Features
- TENTATIVE INFORMATION
- 31.1-inch native 4K 10-bit IPS panel
- Native Panel resolution 4096 x 2160
- 14 Bit signal processing
- HLG and PQ-HDR capability
- Wide colour range ITU709 / DCI-P3(99.4%) / BT2020(83.8%)
- Built-in 3D-LUT
- Built-in Auto Calibration (only external sensor is needed)
- Brightness 350 cd/m²
- Contrast: 1500:1
- 12G-SDI In/Out
- 4 x 3G-SDI QUAD 4K or HD inputs
- SFP Future slot
- HDMI 2.0 Input
- Signal support up to 4096x2160P 60/50 Hz
- Low Latency Mode, for critical Audio/Video applications
- TSL Tally an GPI Tally include on screen marker
- IP remote control
- Flexible Gamma selection from 1.0 to 3.0 in 0.1 steps
- 16ch audio meters with alert and output selection
- Waveform Monitoring with Line selector
- Vector and Histogram tools
- lot´s of additional Monitor tools, include Field/Frame selection, Zoom, H/V delay, Focus, RGB Mono, SDI Time code, Safety and screen markers, etc.
- Comes with a adjustable U-Stand
Panel Specifications
- Panel size (diagonal in inch)
- 31.1
- Panel resolution
- 4096 X 2160 Pixels
- Panel Aspect Ratio
- 17 to 9
- Panel surface glare / non glare
- non glare
- Panel Type LCD
- Yes
- Panel Modulation IPS
- Yes
- Back-light LED
- Yes
- Brightness in cd/m²
- 350
- Panel Bit depth:
- 10
- Image Processing Bit depth
- 14
- Viewing angle H/V
- H 178 / V 178
- Contrast Ratio
- 1500:1

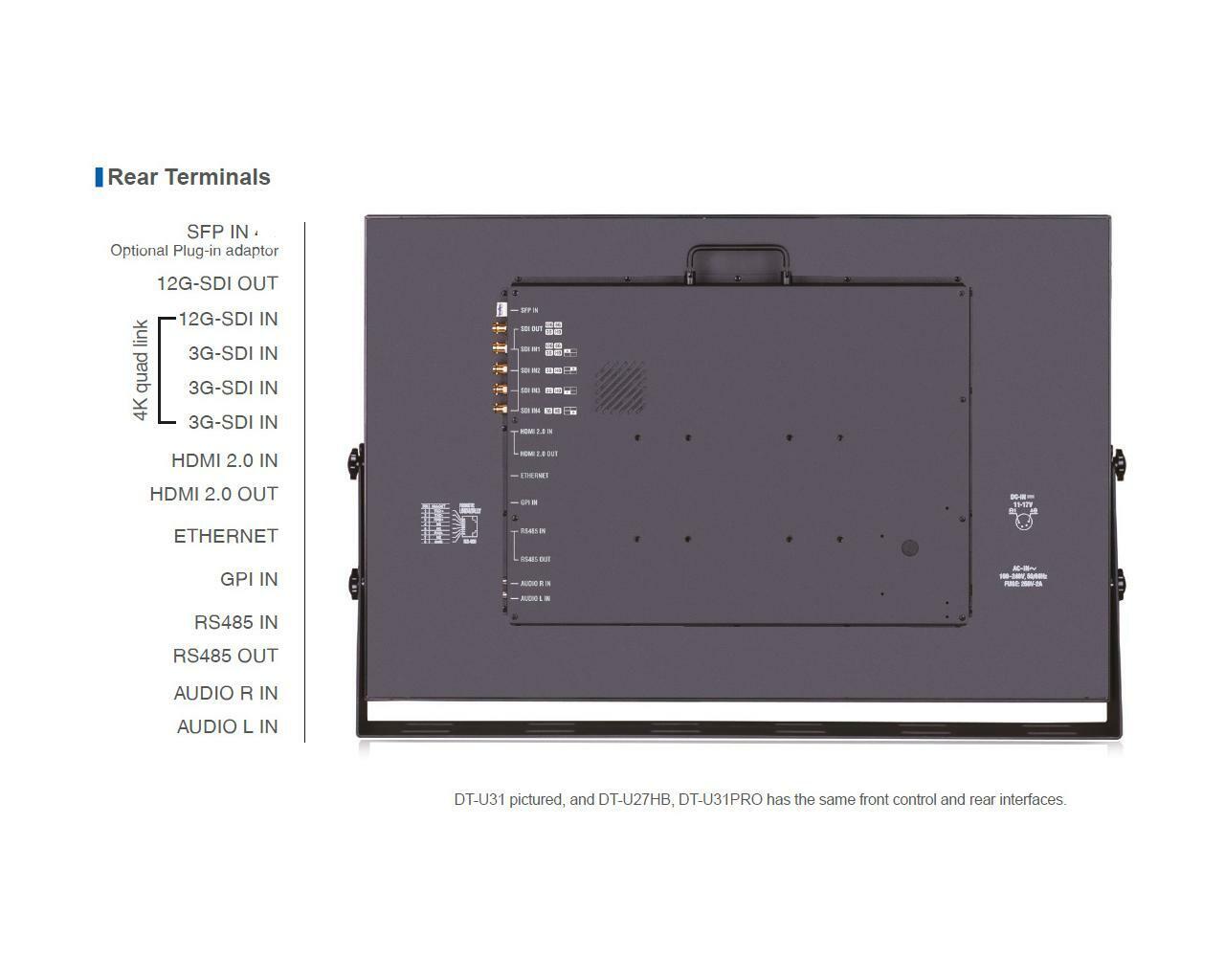

IN-OUT´s Connections VIDEO
- Input HDSDI
- Yes, 1 x 12G / 3 x 3G
- Number of HDSDI Inputs
- 4
- Input HDMI
- Yes, HDMI 2.0
- Number of HDMI Inputs
- 1
- Loop out HDSDI
- Yes, 1x 12G
- Loop out HDMI
- Yes, HDMI 2.0
IN-OUT connections AUDIO
- Audio Line IN
- Yes, 2 times RCA
- Audio Embedded Channel out
- Yes, selectable 2x
- Headphone out
- Yes
IN-OUT Connections Controls
- GPI IN
- Yes, RJ45
- RS485/422 IN
- Yes, for TSL
- IP Ethernet Port
- Yes, RJ45
- USB Port
- Yes, Front connector, for Calibration and Service
- Other Ports
- Yes, Future SFP Slot
Option Slots
- Option slot Feature A
- Yes, SFP
Supported Signal Formats
- HDSDI/SD Signal Formats 4K
- Yes, 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) - HDSDI/SD Signal Formats 2K
- Yes, 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50); 1080p (30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576i (50) - HDMI Format 1080 interlaced
- 1080i 60/59.94/50
- HDMI Format 720p
- 720p 60/59.94/50
- HDMI Format 1080P plus
- 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
Dedicate Functions
- SDI Timecode
- Yes
- R/G/B/Mono
- Yes
- False color
- Yes
- Zebra stripes display
- Yes
- Peaking focus assist
- Yes
- H/V delay
- Yes
- Field/Frame mode
- Yes
- Native Interlace screening (without change to Progressive)
- Yes
- Scan Modes
- Safety area markers
- Yes
- Center Marker
- Yes
- Scale Markers
- Yes
- Area Marker Visibility
- OFF,Line,Half,Half+Line
- Tally via GPI
- Yes, include IMD/UMD and Top LED
- Tally Multi-Color
- Yes
- Low Latency Mode
- Yes
- Environment Power Save function
- Yes
- User presets
- Yes
- 3D-LUT
- Yes
- TSL UMD/IMD Support via:
- Yes, TSL 3.1, 4.0, 5.0 UMD
- Direct Input Channel buttons
- Yes
- Auto Aspect
- Yes
- OPERATION KEY-LOCK
- Yes
- Operation LED Dimmer (Buttons)
- Yes
- Direct Brightness/Contrast/Color control
- Yes
Dedicate Features
- Auto source search
- Yes
Measurement and indication Tools
- Waveform
- Yes
- Waveform enlargement
- Yes
- Waveform Line selector
- Yes
- Waveform subs
- Y/Cb,Cr,R,G,B / view color selection, transculent
- Vector-scope
- Yes
- Vector-scope enlargement
- Yes
- Histogram
- Yes
- Histogram subs
- RGB/Y
- Audio Level Meter
- Yes
- Audio Level Meter Channels
- 16
- Audio Level Meter subs
- Audio abnormal alert info display Display only 2-ch, 8-ch, or full 16-ch Chart position / Translucent adjust
Calibration and Color settings
- Preset Color Temperature 6500K
- Yes
- Preset Color Temperature USER:
- Yes
- Manual calibration of Color Temperature (gain or/and cut-off)
- Yes
- Internal Auto-Calibration
- Yes
- External Colormetrie Sensor needed
- Yes, Xwrite I1Display EODI$3-DCOE / Specbos (Jeti)
- Gamma Levels
- in 0.1 steps from 1.0 to 3.0
- Adjustable Back-Light
- Yes
Dedicate Timing Information
- less 1/2 Frame in Low Latency mode
Power and Enviroment Spec´s
- Power AC
- Yes, Build in 110 V to 240 Volts
- DC Connector Type:
- Power consumption
- 110 Watts
- Operation Temperature in Celsius
- 0C to 40C
- Operation Humidity:(Non-Condensing)
- 10% to 90%
- Storage Temperature in Celsius
- -15C to 60C
- Storage Humidity (Non-Condensing)
- 10% to 90%
Mechanical Informations
- VESA Mount
- Yes
- VESA Format
- 100×100 / 200 x 100
- Dimensions W x H x D in mm
- W:748mm / H:467mm / D:91mm
- Weight (without stand) in Kg:
- 11.45Kg
Include Package
- AC Power cord
- Yes
- Others
- Safety Information include U-Stand
General Editing Note
- General Note
- Simulated pictures.The values for weight and dimensions are approximate. Design and specifications subject to change without notice.
