JVC DLA-RS 1100E – (Baugleich NP5)
65mm All-Glas Lens D-ILA Laser Projektor 4K native
New 0.69 inch 4K D-ILA (4096 x 2160) device x 3
High-definition display at 4K resolution (4096 x 2160)
Exceptionally bright 1,900 lm means bright,
high-resolution imagesDeep Blacks are realized by a High Native Contrast Ratio
of 40,000:1 (Dynamic Contrast Ratio 400,000:1)2x HDMI (48 Gbps, HDCP 2.3) inputs, supporting 4K120P
input signalsTheater Optimizer** function, which works in Frame Adapt
HDR mode, offers optimum HDR images by analyzing usage environments using the
screen size and gain information and intelligently adjusts tone mapping.Display the MaxCLL and MaxFALL mastering data available
for HDR content on some UHD Blu-ray discsCompatible with Hybrid Log-Gamma that is expected to be
used widely in future broadcasting10 Installation Modes centrally manages various settings
related to installation to enjoy video best suited for each environmentSettings of Installation Mode include Lens Control, Pixel
Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style,
Keystone, Pincushion, and Aspect; stored installation modes for various
environments can be called up.Renewed Clear Motion Drive supporting 4K60P (4:4:4)
signal improves moving images more than everMotion Enhance technology reduces residual images and
blurring that are often found in fast-moving images by optimally controlling
the drive of D-ILA devicesColour Management System with 6-axis Matrix
Auto-Calibration Function using an optical sensor*** is
capable of optimizing essential elements in the image, including colour
balance, gamma characteristics, colour space and colour tracking
DLA-RS1100 – D-ILA Projector
- Device
- 0.69-inch Native 4K DILA Device (4096×2160) x3
- Resolution
- 4096 x 2160
- Lens shift function
- +/-80% vertical & +/-34% horizontal, motorised in 16:9 aspect mode

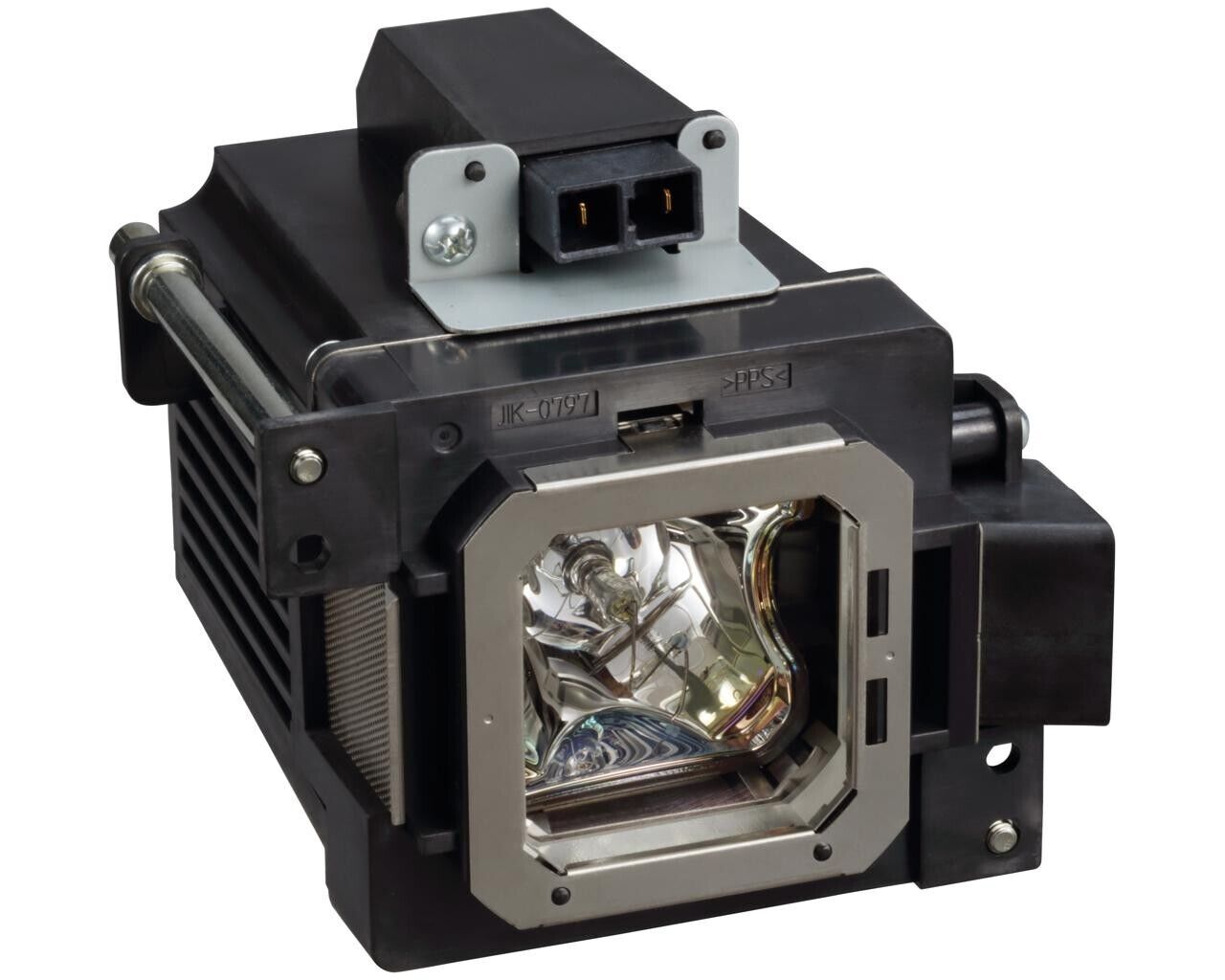

- Light source lamp
- NSH 265 W
- Lens
- All-glass lens with 65 mm diameter
- Zoom
- 2X zoom & focus, motorised
- Lamp life
- Approx. 4500 hours in Low mode
- Brightness
- 1,900 lm
- Contrast Ratio
- Native: 40,000:1, Dynamic: 400,000:1
- Video format
- Digital: 480p, 576p, 720p 60/50, 1080i 60/50, 1080p 120/100/60/50/30/25/24, 2048×1080 120/100/60/50/30/25/24, 3840 x 2160p 120/100/60/50/30/25/24, 4096 x 2160p 120/100/60/50/30/25/24
- PC input signal
- HDMI
- VGA/ SVGA/ XGA/ WXGA/ WXGA+/ SXGA/ WSXGA+/ UXGA/ WUXGA/ WQHD (60)/ WQHD (120)

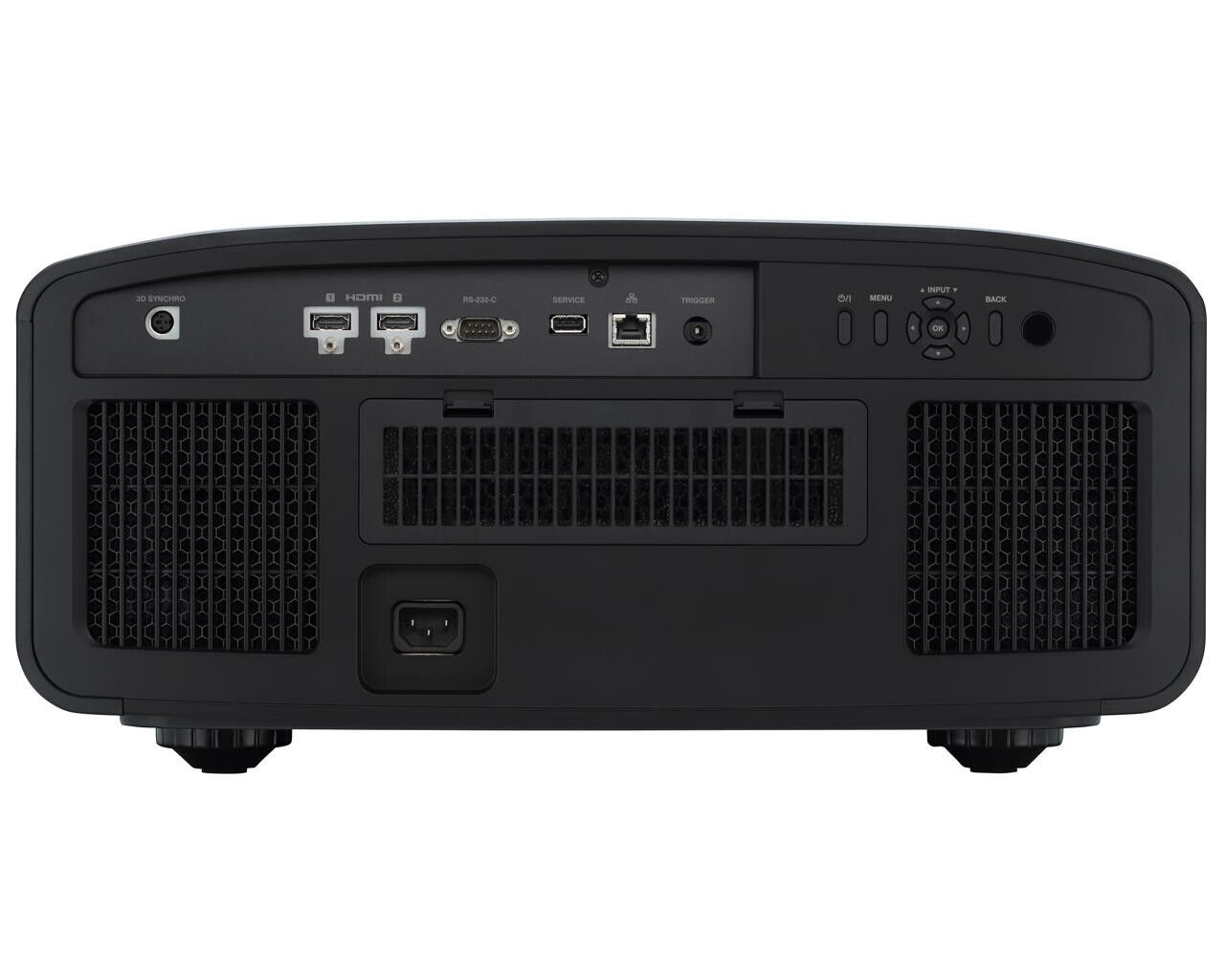

- Video input terminals (back panel)
- HDMI
- 2 (48Gbps, HDCP2.3, no support for CEC)
- Output terminals (back panel)
- 3D sync
- 1 (Mini DIN 3-pin)
- Trigger
- 1 (mini jack, DC12V/100mA)
- Control terminals
- RS232C
- 1 (D-sub 9-pin)
- LAN
- 1 (RJ-45)
- Service terminal
- Service
- 1 (USB Type A) (for firmware update)
3D
- 3D format
- Frame packing
- 720p 60/50, 1080p 24
- Side-by-side
- 720p 60/50, 1080p 60/50/24, 1080i 60/50
- Top & bottom
- 720p 60/50, 1080p/24
General
- Noise level
- 24dB (in Low Mode)
- Power requirement
- AC100V-240V, 50/60Hz
- Power consumption
- Projector in use
- 420 W
- Standby
- Normal: 1.5W, Eco-mode: 0.3W
- Networked standby
- 1.3 W (LAN), 1.0 W (RS-232C), 1.3 W (LAN and RS-232C)
- Switchover time
- 20 min. (To standby or networked standby; default)
- Dimensions: W x H x D, mm
- 500 x 234 x 495
- Weight, kg
- 19.2
Changes and errors excepted! Änderungen und Irrtümer vorbehalten!
