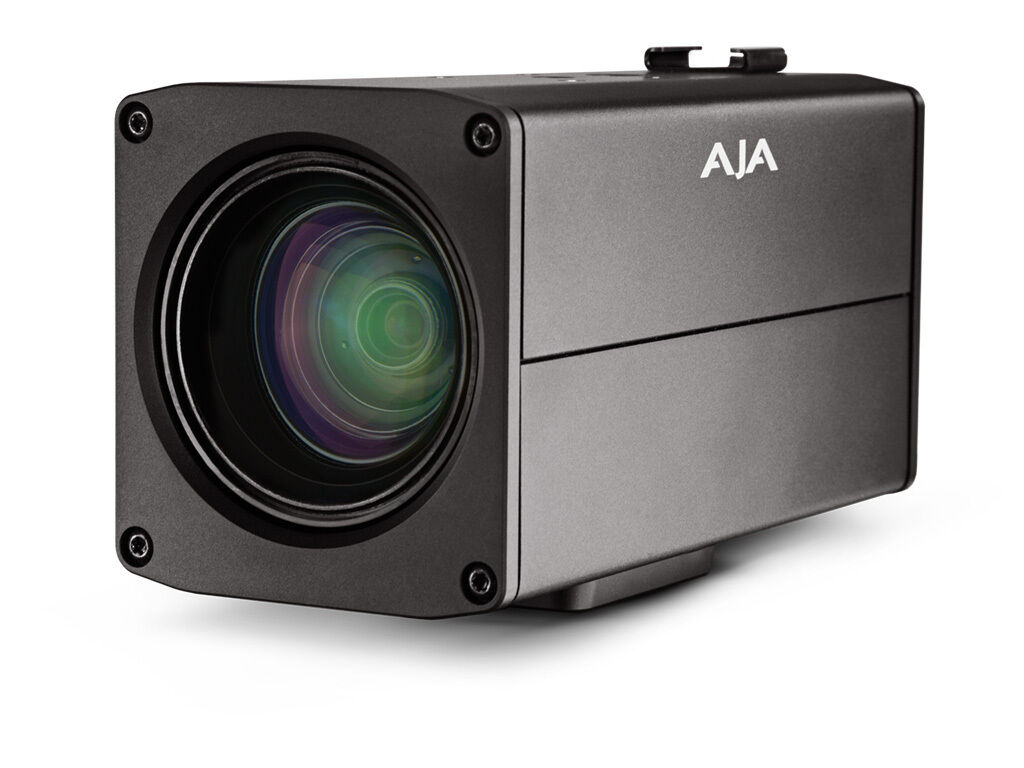

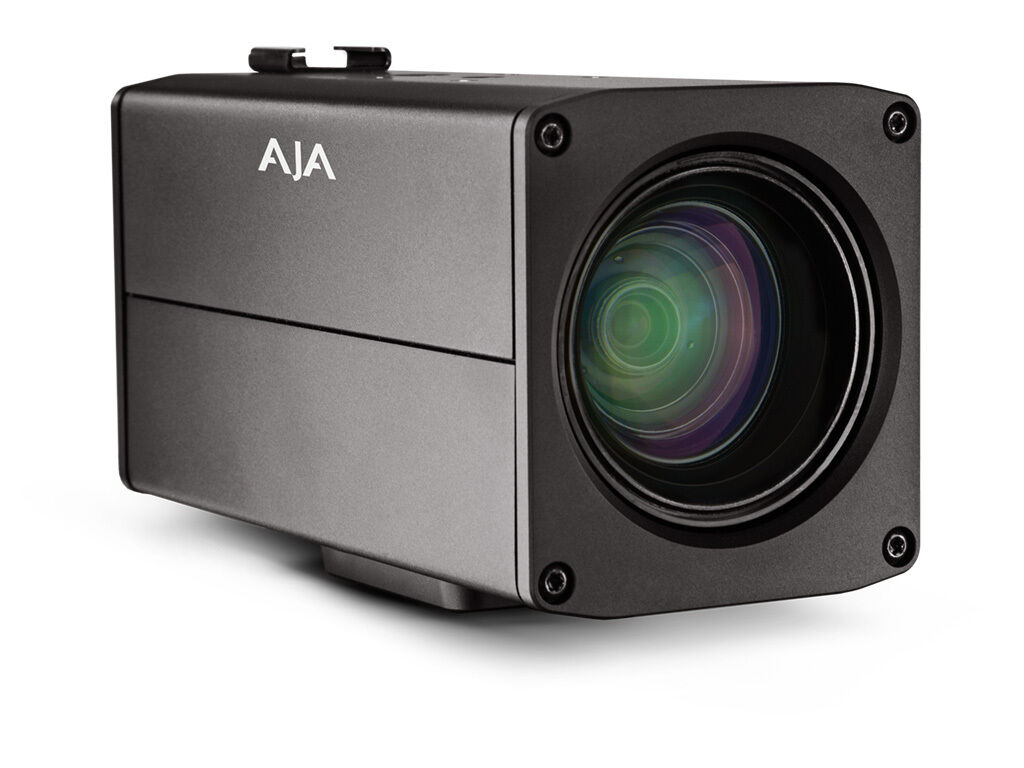

AJA RovoCam

Integrated 4K/HD Camera with HDBaseT

RovoCam is AJA’s first compact block camera for industrial, corporate, security, ProAV and broadcast applications. RovoCam’s HDBaseT interface supports control of 4K/UltraHD video, power, audio and RS-232 over a single Cat 5e/6 cable.

RovoRx-HDMI, the companion receiver, offers the simplest integration with RovoCam offering an HDMI output, stereo audio out, control and power.

Superior Optics, Simply Delivered
RovoCam’s marriage of lens to delivery begins with superior Sony optics, complete with built-in 12 x optical zoom and up to 20 x zoom with Sony Super Resolution Zoom and autofocus or manual focus capabilities; all easily controlled remotely via Sony’s VISCA protocol.

RovoCam is built around Sony’s 4K (Sony FCB-ER8300) camera module featuring the back illuminated CMOS sensor and Sony image processing for excellent performance.

What sets RovoCam apart from other cameras in its category, is an integrated HDBaseT interface supporting uncompressed video, power, stereo audio and RS-232 control over a single Cat 5e/6 cable running at lengths of up to 100 meters.

Delivering this much functionality and power with single cable connectivity dramatically simplifies installation, camera setup and footprint requirements.

Distance, Power and Control. All Over a Single Cable.
HDBaseT sits at the heart of RovoCam.

RovoCam itself features an integrated HDBaseT transmitter. Not only does HDBaseT offer affordable long cable runs up to 100 meters over standard Cat5e/6 cables, it also passes RovoCam’s gorgeous UltraHD/HD imagery, audio, control of the camera, and power to the unit.

A single Cat 5e/6 cable carries all uncompressed video, 2-Channel audio, VISCA camera control, and power for the simplest installation ever due to RovoCam’s integrated HDBaseT interface.

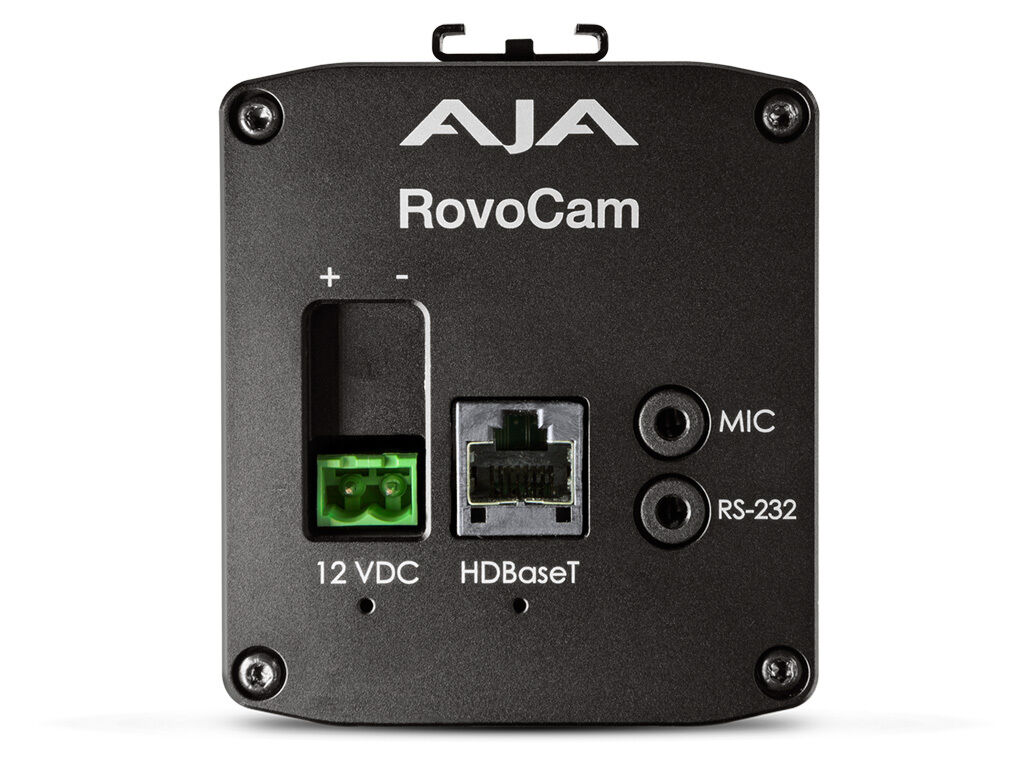

Connectivity:

• 1 x HDBaseT connector (RJ-45) allowing camera interaction and control, uncompressed video, audio and power all over one Cat 5e/6 cable.
• 1 x 3.5mm Mic audio input
• 1 x 3.5mm RS-232 input
• 1 x local power connector

Simple to Install. Simple to Operate.

Note: Power and RS-232 connections on RovoCam are not needed if those functions are supplied by the HDBaseT interface.

Robust, Reliable, Desirable
Reliable, practical and compactly encased in rugged and durable aluminum, RovoCam’s small and light form factor allows simple mounting in a wide range of scenarios. From tripod, stage, conference room to security camera mounts, RovoCam can go wherever you need it and ships with a simple mount included to get you going.

RovoCam is compatible with Sony’s popular SNCUNIHB/1 outdoor housing, ensuring reliable performance in all outdoor environments.

RovoRx-HDMI
Receive and Deliver
Control and display RovoCam’s gorgeous UltraHD/HD imagery remotely with RovoRX-HDMI.

RovoRx-HDMI is an UltraHD/HD HDBaseT Receiver with integrated HDMI video and audio outputs specifically designed to receive RovoCam’s output. Receive the RovoCam’s video and audio up to 100m away from the camera, and output to HDMI TVs and devices.

The HDBaseT connector on RovoRx-HDMI supports camera uncompressed video, audio, power, and control, all over a single Cat 5e/6 cable, greatly simplifying cabling and systems integration.

RovoRx-HDMI connectivity includes:

1 x UltraHD/HD HDMI Output
1 x RCA audio output
1 x USB
1x RS-232 output
1 x HDBaseT connector (RJ-45) allowing for camera interaction, power, and control, all over one Cat 5e/6 cable.

Powerful Optics meets Easy Transport.
RovoCam when paired with RovoRx-HDMI utilizes the power of HDBaseT, combining video signal, camera control, audio and power all passing over one standard Cat 5e/6a cable.

RovoRx-HDMI HDBaseT receiver provides an HDMI 1.4b video output for monitoring, audio output, and RS-232/VISCA for complete camera control. VISCA control can be passed through to a joystick controller or alternatively to a computer with a com port for software control.

Just plug in your RovoRx-HDMI receiver unit and your camera is up and running and ready to use.

Complete Control
RovoCam is simple to control via flexible software and hardware support.

RovoCam offers industry standard Sony VISCA protocol support, Local RS-232 connectivity and control over a single Cat 5e/6 cable through HDBaseT.

Work your way, whether a fan of compatible joystick driven hardware, or through software; you’re in control.

Tech Specs


RovoCam
Camera Module	Sony FCB-ER8300
Video Formats	(UltraHD) 3840x2160p 25, 29.97 (HD) 1080p 50, 59.94 (HD) 1080i 50, 59.94 (HD) 1080p 50, 59.94 (HD) 720p 50, 59.94 720x480p 59.94 720x576p 50
Pixel Format	YUV 4:2:2 RGB 4:4:4
Sensor	Progressive scan CMOS, 1/2.3 3840×2160 8.93 Mega Pixels
Lens	Focal Length: 3.9mm to 46.8mm
F value	1.8 to 2.0
Horizontal angle of view	70.7 degrees (wide), 6.2 degrees (Tele)
Magnification	12x optical, 20x with Super Resolution Zoom
Lens Control	Zoom, Focus, Iris, IRCS
White Balance	Auto, ATW, Indoor, Outdoor, One Push, Manual, Sodium lamp
Focus	Auto, Manual, One push trigger mode
Digital Zoom	12x
Super Resolution Zoom	UHD: 1.67x (max 20x combined with 12x optical zoom) HD: 2.0x (max 24x combined with 12x optical zoom)
Image Processor	Noise reduction (2D/3D) Visibility Enhancer ICR (Day and Night) Slow AE High Sensitivity Gamma Character Generator Defog Color Enhancement Picture Effect Spherical Privacy Zone Masking E-Flip
Video Output Digital	HDBaseT (RJ-45, Requires Receiver Unit) Cat 5e 70m (230 ft) or Cat 6a 100m (328 ft)
Audio Input Analog	1 x 3.5mm TRS Input with 3V PiP (Plug in Power)
Control	1 x 3.5mm TRS Input for VISCA camera control. *RS-232 can also pass the control from the RovoRx-HDMI Unit as well.
User Interface	VISCA Compatible Control Software and Hardware AJA Control Software TBD
Physical	Width: 2.8” (71mm) Length: 5.9” (149.9mm) Height: Including tripod mount and cold shoe – 3.6” (91.4mm) Power: 10-12Vdc 2 pin pluggable terminal block, 0.6A max 6W typical, 8W max OR Power over HDBaseT Conforming to IEEE802.3af-2003 mode A 6W typical, 8W max Weight: 2.2 lbs (1kg) Safe Operating Temperature Range: 0C to 40C (32F to 104F)
RovoRx-HDMI
Video Input	HDBaseT (RJ-45)
Video Output Digital (When in use with RovoCam)	HDMI 1.4b
Audio Output Analog	2-channel unbalanced 2 x RCA connectors
RS-232	1 x 3.5mm TRS Input for VISCA camera control.
USB	1 x USB for firmware and additional control
Physical	Width: 4.03” (102.4mm) Length: 5.2” (132mm) Height: 0.94” (23.9mm) Power: RovoRx-HDMI only: 48V @ 125mA = 6W typical, 48V @ 156mA = 7.5W max RovoRx-HDMI powering RovoCam: 48V @ 271mA = 13W typical, 48V @ 312mA = 15W max Weight: 2.2 lbs (1kg) Safe Operating Temperature Range: -5C to 40C (23F to 104F)
