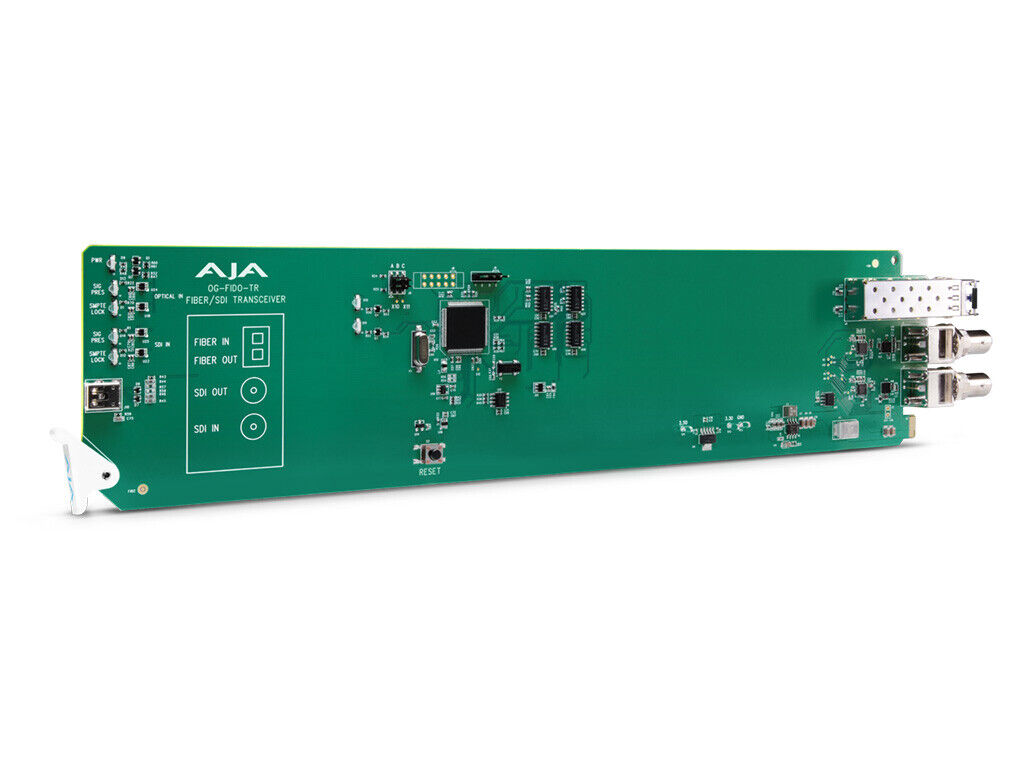

AJA OG-FIDO-TR-MM openGear 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver with DashBoard Support

OG-FiDO-TR-MM offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion, allowing for cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode fiber optic cables – useful for eliminating ground loop problems.

Features
• Video Formats: 150 Mbps – 3 Gbps, format agnostic
• Inputs: 1x3G-SDI BNC; 1x Multi-Mode LC Fiber
• Outputs: 1x 3G-SDI BNC; 1xl Multi-Mode LC Fiber
• Monitor via openGear DashBoard
• Input Present and Input SMPTE Lock LEDs
• Automatic detection and reclocking
• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select
• Nominal Wavelength: 850 nm
• Power: 2.5 watts
• Hot swap capable
• Compatible with OGX, OG3 and DFR-8321 openGear frames

Connectivity
Both Fiber and 3G-SDI inputs are reclocked with best in class input jitter tolerance. 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb are supported. Both signal paths are independent and can be different rates. Supports Multi-Mode fiber cable.

openGearCompatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

Download DashBoard Software
DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows and Linux.


Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

Industry-Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

OpenGear products are covered by a generous five year international warranty.

AJA Mini-Matrix
Information on the complete line of AJA Rackframes and cards are now available in the Mini-Matrix mobile app on iOS. AJA product are extensive and this app helps you find the right converter for any situation, wherever you are.


Tech Specs

Video Formats	150 Mbps – 3 Gbps, format agnostic
Video Input Digital	1-Channel independent 3G-SDI BNC Input, SMPTE-259/292/424 1-Channel Multi-Mode LC Fiber Input, SMPTE-297 Nominal Wavelength: 850 nm Optical Sensitivity: -15dBm (min)
Video Output Digital	1-Channel independent 3G-SDI BNC Output, SMPTE-259/292/424 1-Channel Multi-Mode LC Fiber Output, SMPTE-297 Nominal Wavelength: 850 nm Optical Power: -7dBm (min), -2dBm (max) Extinction Ratio: 7.5dB (Typ)
Reclocking	270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select All other rates are passed through and not reclocked
User Interface	openGear DashBoard network control software via Windows, macOS or Linux
Size (w x d x h)	openGear standard form factor, front slot and rear card. Two slots required for each card.
Weight	0.5 lb (0.3 kg)
Power	openGear frame compatible, 2.5 watts max per card
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)
