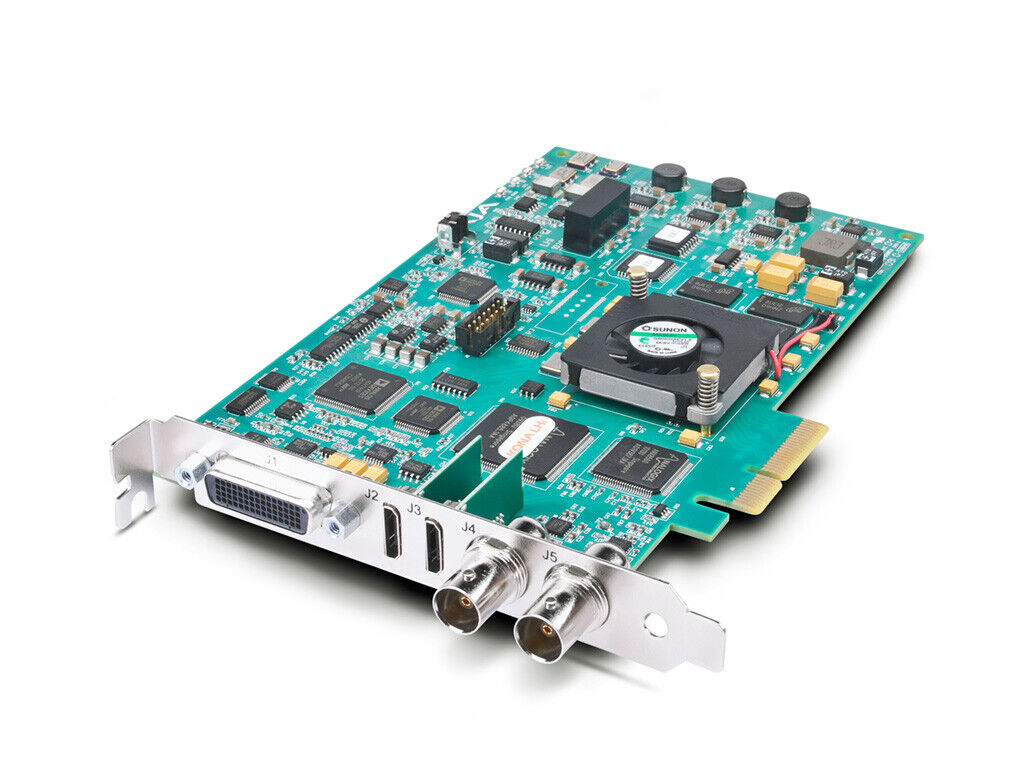

AJA KONA LHi

1.522,00 €

inkl. MwSt. zzgl. Versandkosten

Lieferzeit: 10 Werktage

KONA LHi – die LHe mit Turbolader.
Multi-format analog and digital I/O.

Die LHi hat viele Features der Kona 3 und HDMI Ein- und Ausgänge dazubekommen.

• HDMI 1.3a Ein- und Ausgang mit 10 Bit Farbtiefe
• 3G SDI Ein- und Ausgänge für z.B. 1.080p 50 Format
• Crossconversion zwischen den 1.080er und 720er Formaten

The most flexible card for analog and digital Standard and High Definition workflows.

The flexibility to unlock workflows
KONA LHi provides a wide variety of formats, frame rates and audio/video sources for the connectivity you need. KONA LHi bridges the gap between analog devices and the latest 3G SDI and HDMI-enabled products to provide editing, monitoring and mastering of professional quality video in an affordable, powerful, easy to use product.

Versatile connectivity
Connecting to everything from an HDMI-enabled camera to an HD-SDI VTR, KONA LHi offers a full host of no-compromise features, including 10-bit or 8-bit uncompressed video, 2-channel AES digital audio and 8-channel SDI embedded digital audio, analog composite or S-video or SD/HD component video I/O, and 2-channel balanced analog audio I/O.

KONA LHi’s HDMI 1.3a support allows you to feed a „deep color“ monitor with glorious 10-bit video, banishing video banding and preserving your gradients and rich color palette. Only KONA LHi delivers this 10-bit deep color HDMI support. HDMI signals can also be converted to SDI for use in more professional environments.

Integrated AJA hardware conversion
Like the KONA 3G, KONA LHi features full 10-bit, broadcast quality, motion-adaptive SD to HD up conversion, HD to HD cross conversion, HD to SD down-conversion, and automatic HD/SD 12-bit component analog output. Since KONA LHi’s conversions are hardware-based, they are available all the time – during ingest or playback.

Outputs can be configured independently allowing you to have simultaneous HD and SD output – or two different types of HD: 720 or 1080 – output at the same time via cross-conversion.

Extensive software support
KONA LHi is supported by an extensive list of professional software for editing, visual effects, graphics and more allowing the same KONA LHi card to be used by many different applications on the same system. In addition, AJA provides several free applications that enable you to utilize the power of the KONA LHi card even without having to run a particular software package. This allows you to create unique workflows without tying up valuable resources unnecessarily.

Extend your Connectivity with KLHi-Box
The optional KHLi-Box breakout box let’s you integrate KONA LHi easily into rack environments for quick access to all video and audio connections. Additional connectivity includes BNC digital AES/EBU connectors and RCA audio monitoring jacks.

Technische Spezifikationen

Video Formats
  • 525i 29.97
  • 625i 25 720P 50, 59.94, 60
  • 1080i 25, 29.97, 30
  • 1080PsF 23.98, 24
  • 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 2K
    • 2048 x 1080P 23.98, 24, 25, 29.97, 30
    • 2048 x 1080PsF 23.98, 24
Software-dependent Formats

These formats are dependent on specific software functionality and are not normal ‚over-the-wire‘ formats.

  • 525i 23.98
  • 720P 23.98
Video Input Digital
  • 3G/SD/HD SDI, SMPTE-259/292/296/424, 8- or 10-bits
  • Single Link 4:2:2 (1 x BNC)
  • HDMI v1.3 30 bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD, 1080p-50/60
Video Input Analog
  • Composite/S-Video (Y/C) (1 x BNC/2x BNC+adapter)
  • NTSC, NTSCJ, PAL
  • 12-bit A/D, 2x oversampling
  • 3 line adaptive comb filter decoding
  • +/- .25 dB to 5.0 MHz Y Frequency Response
  • +/- .25 dB to 1 MHz C Frequency Response
  • .5% 2T pulse response
  • <1.5% Diff Phase
  • <1.5% Diff Gain
  • SD Component (3 x BNC)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J
  • 12-bit A/D, 2x oversampling
  • +/- .25 dB to 5.5 MHz Y Frequency Response
  • +/- .25 dB to 2.5 MHz C Frequency Response
  • .5% 2T pulse response
  • <2 ns Y/C delay inequity
Video Output Digital
  • 3G/SD/HD SDI, SMPTE-259/292/296/424
  • Single Link 4:2:2 or 4:4:4 (1 x BNC)
  • HDMI v1.3 30 bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD, 1080p-50/60
Video Output Analog
  • Composite/S-Video (Y/C) (1 x BNC/2x BNC)
  • NTSC, NTSCJ, PAL
  • 12-bit D/A, 8x oversampling
  • +/- .2 dB to 5.0 MHz Y Frequency Response
  • +/- .2 dB to 1 MHz C Frequency Response
  • .5% 2T pulse response
  • <1% Diff Phase
  • <1% Diff Gain
  • Component (3 x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit D/A, 8x oversampling
  • +/- .2 dB to 5.5 MHz Y Frequency Response
  • +/- .2 dB to 2.5 MHz C Frequency Response
  • .5% 2T pulse response
  • <1 ns Y/C delay inequity
Audio Input Digital
  • 8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous
  • 8-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous
  • 2-channel, 24-bit AES/EBU audio, 48kHz sample rate, Synchronous or Non-synchronous, Internal sample rate conversion (via 1 x XLR on DB-25 breakout cable or optional KLHi-Box)
Audio Input Analog
  • 2-channel, 24-bit A/D analog audio, 48kHz sample rate, balanced (via 2 x XLR on DB-25 breakout cable or optional KLHi-Box)
  • +24dbu Full Scale Digital
  • +/- 0.2db 20 to 20kHz Frequency Response
Audio Output Digital
  • 8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous
  • 8-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous
  • 2-channel, 24-bit AES/EBU audio, 48kHz sample rate, Synchronous or Non-synchronous, Internal sample rate conversion (via 1 x XLR on DB-25 breakout cable or optional KLHi-Box)
Audio Output Analog
  • 2-channel, 24-bit D/A analog audio, 48kHz sample rate, balanced (via 2 x XLR on DB-25 breakout cable or optional KLHi-Box)
  • +24dbu Full Scale Digital (0dbFS)
  • +/- 0.2db 20 to 20kHz Frequency Response
  • 2-channel unbalanced output (via 2 x RCA jacks on optional KLHi-Box)
Up-Conversion
  • Hardware 10-bit
  • Anamorphic: full-screen
  • Pillar box 4:3: results in a 4:3 image in center of screen with black sidebars
  • Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
  • Zoom Letterbox: results in image zoomed to fill full screen
  • Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change
Down-Conversion
  • Hardware 10-bit
  • Anamorphic: full-screen
  • Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
  • Crop: image is cropped to fit new screen size
Cross-Conversion
  • Hardware 10-bit
  • 1080i to 720P
  • 720P to 1080i
  • 720P to 1080PsF
SD to SD Aspect Ratio Conversion
  • Letterbox: This transforms SD anamorphic material to a letterboxed image.
  • H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic
  • SD to full frame SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
  • VCrop: Will transform SD letterbox material to an anamorphic image.
Reference Input
  • Analog Color Black (1V) or Composite Sync (2 or 4V)
  • Looping
  • 75 ohm on optional KLHi-Box, terminated on supplied breakout cable
Machine Control
  • RS-422, Sony 9-pin protocol (via DB-25 breakout cable or optional KLHi-Box)
  • 9-pin D-connector pinout is as follows:
    • 1 GND
    • 2 RX-
    • 3 TX+
    • 4 GND
    • 5 No Collection
    • 6 GND
    • 7 RX+
    • 8 TX-
    • 9 GND
    • Shell GND


Die Ware ist
original verpackt und wird mit Rechnung und ausgewiesener
Mehrwertsteuer versendet.Diese Hardware ist Umtausch- und
Rückgaberecht ausgeschlossen.
Dieses Angebot richtet sich ausschließlich an gewerbliche Käufer.

Zusätzliche Information

Modell

KONA

Marke

AJA

Produktart

Capture Card

ConditionNew
