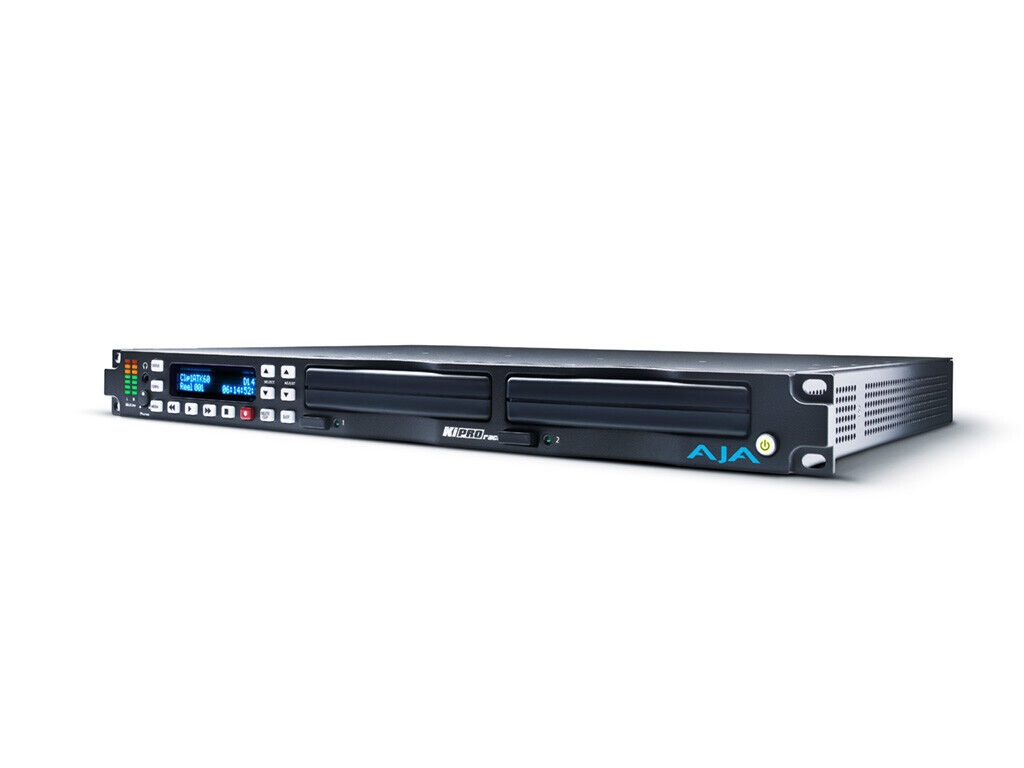

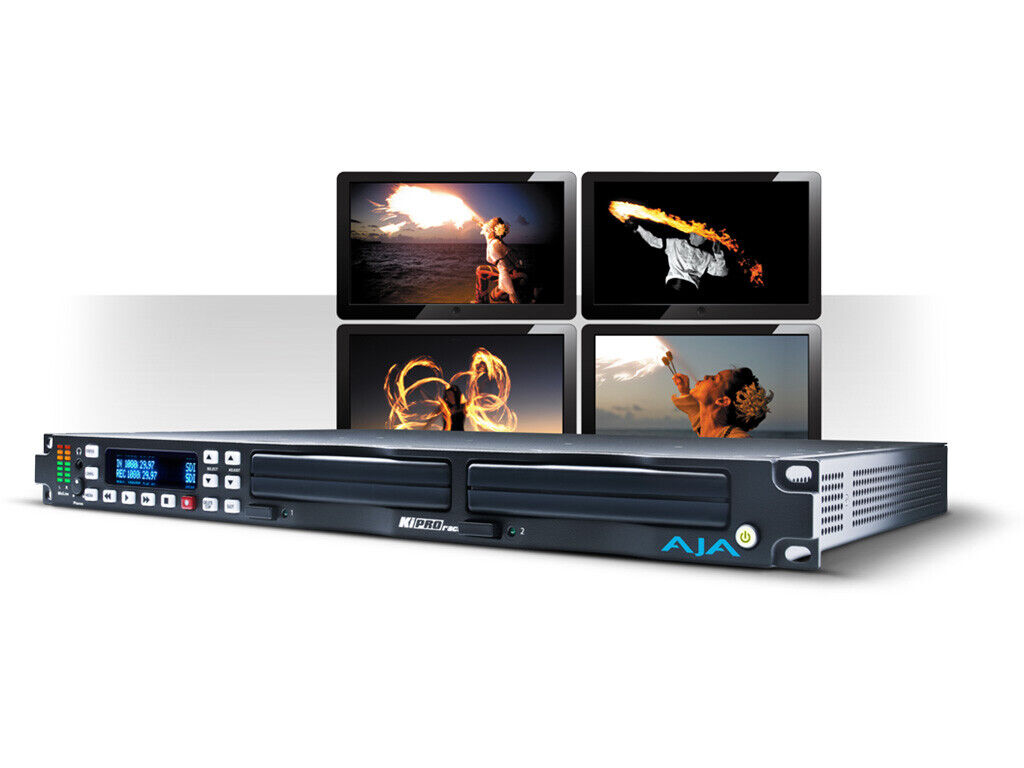

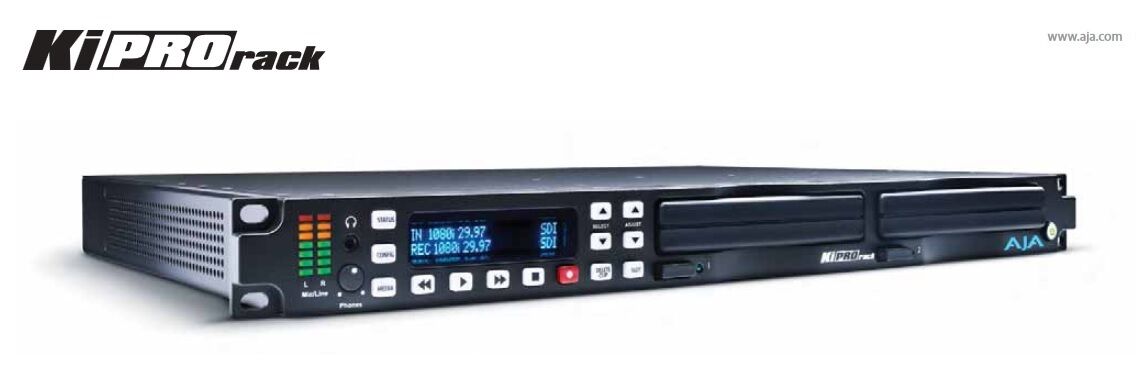

AJA Ki Pro Rack – Rackmount Digital File Recorder
Rackmount Digital File Recorder, with Apple ProRes 422 and DNxHD // Includes: 2 x AC Power Cords
(No Storage Modules included)
Die Alternative zur Bandmaschine
Wechseln Sie schnell und einfach vom Tape zum datenbasierten Workflow
Wenn
man vom Tape weg will, bietet das Ki Pro Rack genau die Aufnahme- und
Abspielmöglichkeiten, die man sich von einem kompakten Gerät in 1RU
Größe wünscht und mehr leistet als ein gewöhnlicher Videorecorder. Über
die Netzwerkverbindung können Daten bequem über Ethernet mit dem Ki Pro
Rack ausgetauscht werden. Auch die komplette Steuerung und Konfiguration
ist über das Netz möglich.
Leichte Integration
Das Ki

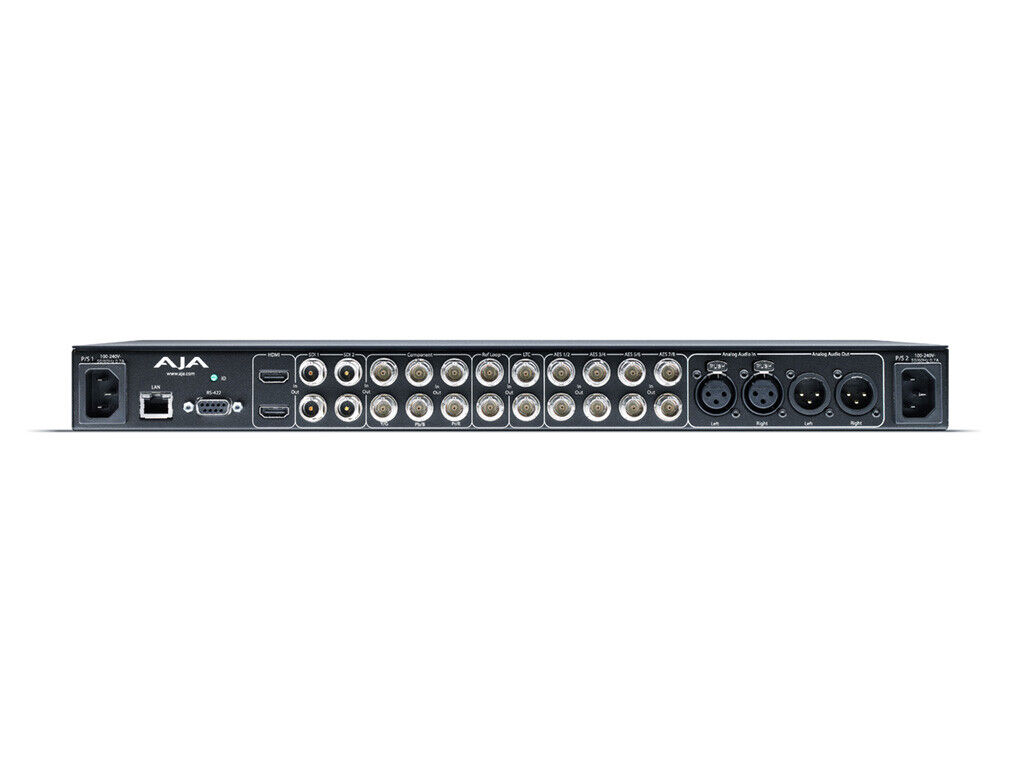

Pro Rack passt zu Ihrer vorhandenen Verkabelung. Alle Anschlüsse
entsprechen professionellen Standards: SDI, HDMI und analog Video, AES,
analog und embedded Audio, LTC Ein/Ausgang, RS-422 Unterstützung,
Genlock und LAN Netzwerkanbindung.
Standalone Betrieb
Jeder,
der mal ein Tapedeck bedient hat, wird mit dem Ki Pro Rack keine

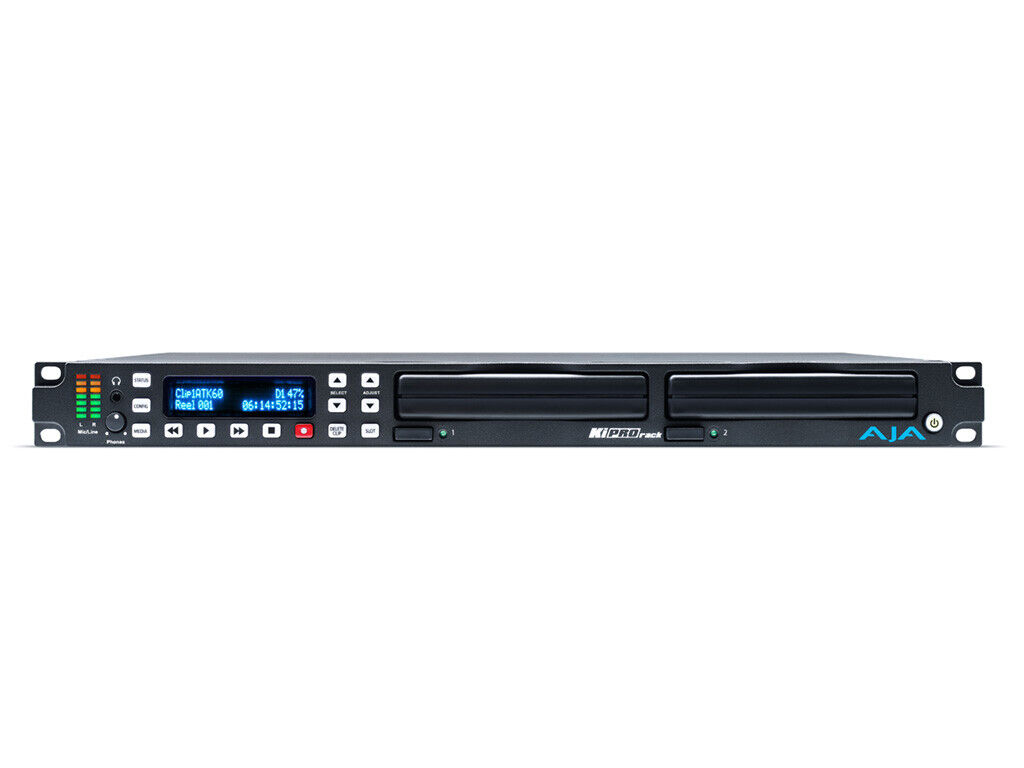

Probleme haben. Bedienelemente auf der Frontseite und ein intuitives
Benutzerinterface ermöglichen den standalone Betrieb und beschleunigen
Ihren Produktionsablauf.
Schnellere Produktion
Wer
High-Quality Apple Pro-Res und Avid DNxHD direkt auf die Ki Pro Rack
Storagemodule aufnimmt, spart sich das zeitraubende Loggen und
Digitalisieren vom Tape. Alle Daten sind sofort im Schnitt nutzbar.
Technical Specifications
| Video Formats | - 525i 29.97
- 625i 25
- 720P
23.98, 25, 29.97, 50, 59.94, 60 (Note: 720p 23.98 (24), 720p 25 and
720p 29.97 require a valid camera source and the use of the Record
Type>VFR selection) - 1080i 25, 29.97, 30
- 1080PsF
23.98, 24, 25*, 29.97* (Note: 25 and 29.97 require a valid camera source
and the use of the Record Type>PsF selection) - 1080p 23.98, 24, 25, 29.97
|
| Codec Support | - Apple ProRes 422
- Apple ProRes 422 (HQ)
- Apple ProRes 422 (LT)
- Apple ProRes 422 (Proxy)
- Avid DNxHD 220x
- Avid DNxHD 145
- Avid DNxHD 36 (Note: Avid DNxHD 36 only provides support for the 1080p format)
|
| Removable Storage | - AJA Ki Stor modules – 2 slots
|
| Video Input Digital | - SD/HD SDI, SMPTE-259/292/296, 10-bit
- Single Link 4:2:2 (2 x BNC, input selection in software)
- HDMI v1.3
|
| Video Input Analog | - SD/HD Component (3 x BNC)
- SMPTE/EBU N10, Betacam 525 line, Betacam 525J
- 12-bit A/D, 2x oversampling
- +/- .25 dB to 5.5 MHz Y Frequency Response
- +/- .25 dB to 2.5 MHz C Frequency Response
- .5% 2T pulse response
- <2 ns Y/C delay inequity or
- Composite (1 x BNC – CVBS on Y)
|
Video Output Digital
(all simultaneously active) | - SD/HD SDI, SMPTE-259/292/296, 10-bit
- Single Link 4:2:2 (1 x BNC)
- HDMI v1.3
|
Video Output Analog
(all simultaneously active) | - Component (3 x BNC)
- HD: YPbPr, RGB
- SD: YPbPr, RGB (component mode)
- SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
- 12-bit D/A, 8x oversampling
- +/- .2 dB to 5.5 MHz Y Frequency Response
- +/- .2 dB to 2.5 MHz C Frequency Response
- .5% 2T pulse response
- <1 ns Y/C delay inequity or
- Composite (1 x BNC – CVBS on Y)
- NTSC, NTSCJ, PAL
- 12-bit D/A, 8x oversampling
- +/- .2 dB to 5.0 MHz Y Frequency Response
- +/- .2 dB to 1 MHz C Frequency Response
- .5% 2T pulse response
- <1% Diff Phase
- <1% Diff Gain
|
| Audio Input Digital | - 8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous
- 2-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous
- 8-channel, 24-bit AES/EBU audio, 48KHz sample rate, Synchronous or Non-synchronous, Internal sample rate conversion (4 x BNC)
|
| Audio Input Analog | - 2-channel, 24-bit A/D analog audio, 48kHz sample rate, balanced (2 x XLR)
- +24dbu Full Scale Digital
- +/- 0.2db 20 to 20kHz Frequency Response (Note: Line or Mic selection via CONFIG menu parameters)
|
| Audio Output Digital | - 8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous
- 8-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous
- 8-channel, 24-bit AES/EBU audio, Synchronous or Non-synchronous, Internal sample rate conversion (4 x BNC)
|
| Audio Output Analog | - 2-channel, 24-bit D/A analog audio, 48kHz sample rate, balanced (2 x XLR)
- +24dbu Full Scale Digital (0dbFS)
- +/- 0.2db 20 to 20kHz Frequency Response
- Stereo unbalanced headphone (1 x ¼” mini jack)
|
| Up-Conversion | - Hardware 10-bit
- Anamorphic: full-screen
- Pillar box 4:3: results in a 4:3 image in center of screen with black sidebars
- Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
- Zoom Letterbox: results in image zoomed to fill full screen
- Zoom
Wide: results in a combination of zoom and horizontal stretch to fill a
16:9 screen; this setting can introduce a small aspect ratio change
|
| Down-Conversion | - Hardware 10-bit
- Anamorphic: full-screen
- Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
- Crop: image is cropped to fit new screen size
|
| Cross-Conversion | - Hardware 10-bit
- 1080i to 720P
- 720P to 1080i
|
| Timecode | - SDI RP188 via SDI BNC
- HDMI (when used with compatible cameras)
- LTC input (1 x BNC)
- LTC output (1x BNC) (Note: active during playback not during record or EE)
|
| Reference Input | - Analog Color Black (1V) or Composite Sync (2 or 4V)
- Looping, non-terminating.
|
| Network Interface | - 10/100/1000 Ethernet (RJ-45)
- Embedded web server for remote control
|
| User Interface | - 2 x 20 character display, with dedicated buttons
|
| Machine Control | - RS-422, Sony 9-pin protocol (via DB-25 breakout cable or optional KLHi-Box)
- 9-pin D-connector pinout is as follows:
- 1 GND
- 2 RX-
- 3 TX+
- 4 GND
- 5 No Collection
- 6 GND
- 7 RX+
- 8 TX-
- 9 GND
- Shell GND
|
| Physical | - Width: 19” (48.26cm)
- Depth: 12.5” (37.74cm) from front panel to back of deepest connector
- Height: 1.75” (4.45cm)
- Power: 100-240 VAC 50/60Hz (Dual, redundant power supplies), 40W typical; 10A Max
|
Die Ware ist
original verpackt und wird mit Rechnung und ausgewiesener
Mehrwertsteuer versendet. Diese Hardware ist Umtausch- und
Rückgaberecht ausgeschlossen. Dieses Angebot richtet sich ausschließlich an gewerbliche Käufer.
