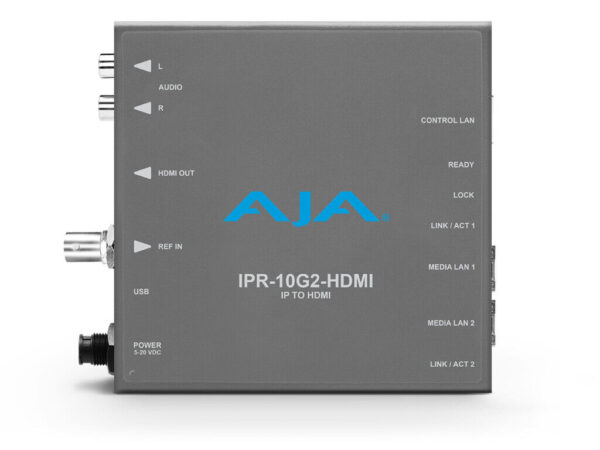

AJA IPR-10G2-HDMI Bridging UltraHD/HD SMPTE ST 2110 Video and Audio to HDMI

IPR-10G2-HDMI provides monitoring of UltraHD and HD SMPTE 2110 signals across 10 GigE to a HDMI ouput.

It receives SMPTE ST 2110 over 10 GigE connectivity, formats the data, including UltraHD or HD video on a full-size HDMI interface. Associated audio from the video stream is extracted, synchronized, and embedded into the HDMI interface and also output on an analog RCA interface.

The IPR-10G2-HDMI features 2x 10 GbE SFP+ cages allowing “hitless switching”, providing redundancy protection for critical distribution and monitoring applications.

The IPR-10G2-HDMI also offers 1x Reference In via BNC. This makes it ideal for integrating into existing basebands environments such as master control, a truck, or an edit suite.

Features
IPR-10G2-HDMI extracts a SMPTE ST 2110 essence from an incoming IP stream and presents it for display on HDMI devices. Providing two SFP+ cases for protection with „hitless switching“. Its rugged, fanless, Mini-Converter design is ideal for placement in a wide range of display and device scenarios, from studios to field.

Key features:
• SMPTE 2110 audio, video receiver
• Supports UltraHD up to 30p and HD up to 60p, YCbCr 4:2:2
• Rugged, fanless design
• 2x 10 GigE SFP+ cages for media LAN (providing support for „hitless switching) with status light
• 1x 1 GigE RJ45 socket for control LAN with status light
• Dedicated HDMI receiver with full size HDMI 1.4b video port
• Full 10-bit pixel processing pipeline
• Embedded HDMI audio output (up to eight channels)
• 2x RCA analog audio output
• 1x BNC Reference In
• 1x mini-USB port for initial network configuration with AJA eMini-Setup software
• Complete control interface on any web browser from a built-in webserver
• Customizable control with AJA REST API
• 5-year international warranty and support

Monitor ST 2110 Video and Audio from anywhere on the Network.
The IPR-10G-HDMI is a SMPTE ST 2110 to HDMI Mini-Converter suited for point-of-use applications including source monitoring and an HDMI feed to compatible devices.

The AJA IPR-10G-HDMI receives SMPTE ST 2110 IP video and audio, then formats the data for output on a full size HDMI 1.4b interface.

With 3G/1.5G-SDI routers often at capacity while facilities await their transition to IP, there is a huge benefit in being able to send video sources from a feed, camera, router or edit bay via IP and provide HDMI monitoring at the destination.

The audio associated with the video stream is extracted, synchronized, and then embedded into the HDMI interface as well as output on an analog RCA interface.

Workflow
IPR-10G2-HDMI provides HDMI output from SMPTE ST 2110 video and audio over IP streams. Combine your IPR-10G2-HDMI units with AJA KONA IP for HD (I/O card for use in desktop workstations) or receive UltraHD or HD from servers and more to instantly create a real-world ST 2110 workflow for video over IP production and monitoring.

User Control
IPR-10G2-HDMI provides two key methods for control. The Control LAN Ethernet port enables control of the Mini-Converter from web browsers on any platform and REST clients. The mini-USB connector facilitates quick and simple initial network configuration, and firmware updates.

• 1x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
• HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
• Web and REST clients supported
• 1x USB 2.0 Mini-B (IEC 62680-1) connector
• AJA eMini-Setup of network parameters

Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality – Guaranteed
All AJA Mini-Converters are covered by a five year warranty and AJA’s advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.

Tech Specs

Video Formats	(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30 (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920 x 1080i 50, 59.94 (HD) 1280 x 720p 50, 59.94, 60 (SD) 625i 50 (SD) 525i 59.94
Video Quality	10-bit, 4:2:2, uncompressed
Discovery, Registration and Control	NMOS Ember Plus (no discovery, control only)
Media Transport Interfaces	SMPTE ST 2110 2x SFP+ Cages – SFPs not included  Recommended 10 GigE SFP+ modules: Arista Networks SFP-10G-SR Compatible 10GBASE-SR  Fiberstore SFP-10GSR-85 10G SFP+ 850nm Finisar FTLX1471D3BCL (for single mode 1310nm) Mellanox MFM1T02A-SR 850nm 10G  Note: Maximum supported SFP+ power is 500 mWatts per SFP+ cage
Video Input IP	SMPTE ST 2110 Single channel input Dual channel input for hitless switching (based on SMPTE ST 2022-7)
Video Output Digital	1x HDMI Standard Type A connector HDMI v1.4b 24/30-bits per pixel, RGB/YUV
Audio Output Digital	Up to 8-Channel, HDMI embedded audio, 24-bit per channel, 48 kHz synchronous
Audio Output Analog	2x RCA analog audio Levels at -10 dBu (nominal)
Reference	1x BNC Analog Color Black or HD tri-level sync Reference input is terminated into 75 ohms
User Controls	1x RJ-45 for 10/100/1000 Base-T Ethernet Web and REST clients supported 1x USB 2.0 Mini-B connector AJA eMini-Setup of network parameters via local desktop computer
Size (w x d x h)	5.07″ x 0.94″ x 5.06″ (128.78 x 23.88 x 128.52 mm)
Weight	0.6 lb (0.3 kg)
Power	5-20VDC Regulated, 13 Watts, Power supply required (DWP-U-R1 included with purchase)
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)
