Die
Io 4K benutzt die neueste Thunderbolt™ 2 Technologie für ein breites
Spektrum von Video- und Audio-Verbindungen. Dabei werden auch die neuen
4K und UltraHD Geräte bei Capture und Output unterstützt. Verbinden Sie
die Io 4K mit den führenden Broadcast-, Post-Produktions- und
Sende-Tools und integrieren Sie sie nahtlos in Ihre 4K, HD oder SD
Workflows.

Professionelle Anschlüsse
Egal ob Sie mit SDI, HDMI oder beiden Formaten arbeiten, die
Io
4K hat Standard Anschlüsse für Video, Audio, Referenz, LTC und RS-422
Signale. Damit ist die Io 4K die ideale Wahl für Profis.

Skalierbar
Holen
Sie sich die Performance, die Sie für Ihre SD und HD Projekte brauchen
und wechseln Sie jederzeit zu UHD oder 4K – alles mit demselben Gerät.
Die Hardware Echtzeit Down-Conversion ermöglicht Ihnen professionellen
HD-SDI Output für das Monitoring und die Aufnahme Ihrer 4K Projekte.

Kompatibel
Die
Io 4K hat bewährte Treiber und Plug-Ins für eine große Auswahl an
Produktions-, Editing-, Grafik- und Broadcast-Softwarepaketen für einen
nahtlosen Workflow.

——————–

Io 4K
4K and HD I/O for Thunderbolt™ 2

Io
4K is the next evolution of capture and output hardware offering a full
set of professional video and audio connectivity with support for the
latest 4K and UltraHD devices. The power of Thunderbolt 2 enables Io 4K
to handle a wide range of formats from SD to HD, UHD and full 4K over
both SDI and HDMI.

Professional Connectivity

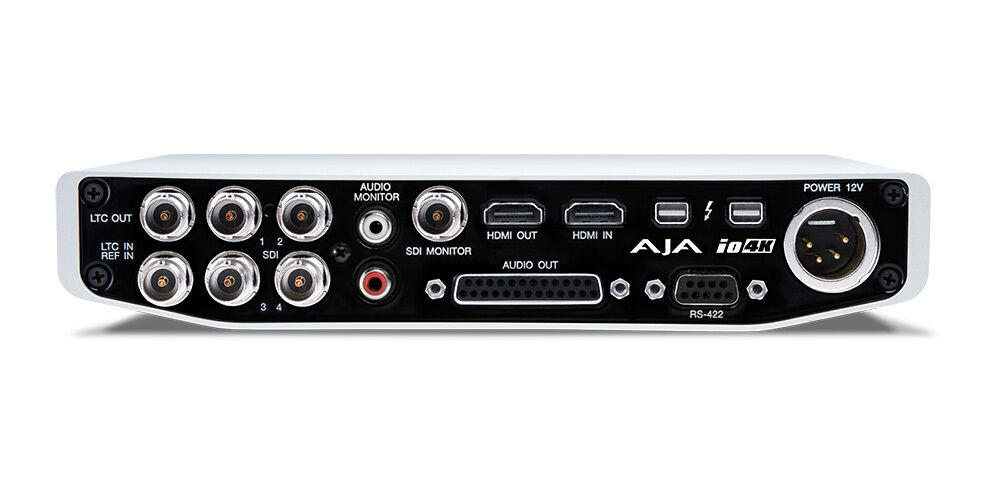

Io 4K has
the connectivity required for today’s variety of productions. With
full-sized BNC connectors for 4K input and output as well as HDMI 1.4 in
and out, Io 4K can handle professional 4 x SDI 4K signals as well as
capturing and outputting 4K over HDMI for use with more affordable 4K
equipment. An additional BNC provides a dedicated, HD-SDI downconverted
output for easy viewing of 4K projects on HD monitors.

When
working at 4K resolutions, Io 4K outputs a high-quality HD-SDI
down-converted signal on a dedicated BNC connector. This HD signal can
be used to output 4K projects directly to HD recorders for broadcast and
for easy viewing of 4K images on HD monitors during post-production.

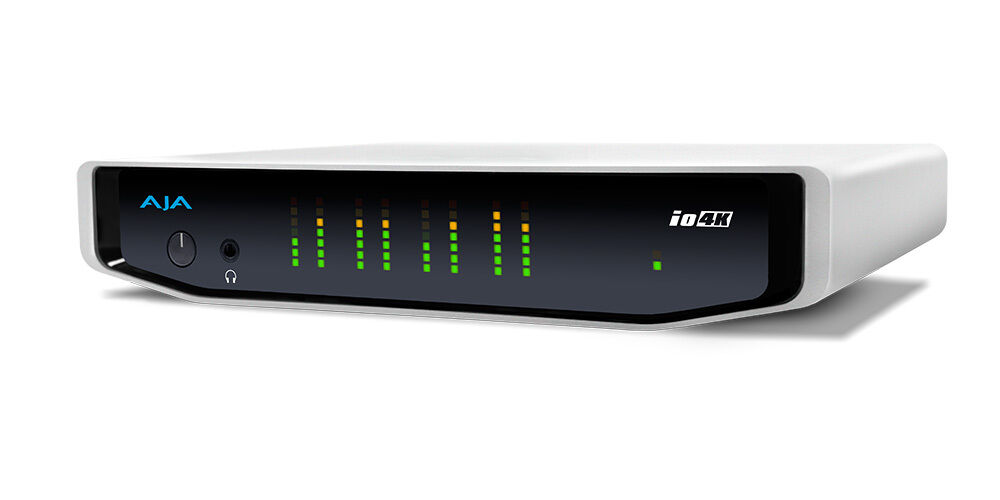

Embedded
16-channel SDI and 8-channel HDMI audio are supported as well as analog
audio outputs via a standard DB-25 connection. Stereo monitoring is
also possible with 2 x RCA outputs and a front panel mini-TRS headphone
jack.

Io 4K can be locked to an external reference for
integration into larger productions, or feed LTC in and out to ensure
footage captured with Io 4K has the proper timecode. An RS-422 port
allows control of tape decks for frame-accurate captures and layoffs.

Futureproof
With
more affordable high-resolution cameras available, many productions are
opting to shoot at a higher resolution even if final delivery is still
in SD or HD. This offers the flexibility to re-master at higher
resolutions in the future.

Io 4K can support your current SD and
HD workflows and provides a path to move to higher resolution
productions whenever the need arises. The realtime downconverter also
means you can work at higher resolutions and easily create lower
resolution deliverables without the need to recapture or re-edit. All at
a size that’s small enough to easily take on-set or in the field.

Powerful
Thunderbolt
2 technology increases the available bandwidth that can be carried on a
single Thunderbolt cable to 20Gbps. Io 4K capitalizes on this increased
capacity to allow up to 4K signals to be captured and output.

With
dual Thunderbolt 2 ports, Io 4K can daisy chain additional devices
together such as high-resolution displays and high-capacity storage for a
complete, portable solution that’s powerful enough to meet the demands
of professional production.

Compatible
Seamlessly
integrate Io 4K with leading post-production and delivery tools such as
Apple Final Cut Pro X, Adobe Creative Cloud, AJA Control Room,
Telestream Wirecast 5 and more. Io 4K gives you the flexibility to use
the software tools that are appropriate for your workflow while
maintaining a consistent, high-quality hardware capture and output
solution that moves from SD to HD to 4K as you do.

Features
• 4 x bi-directional 3G-SDI
• 4K/UHD HDMI I/O
• Simultaneous SDI and HDMI outputs
• Real time 4K to HD downconversion for HD-SDI and HDMI monitoring
• 10-bit high-quality 4:2:2 and 4:4:4 workflow support
• Two Thunderbolt™ 2 ports
• Use with the new Apple Mac Pro for up to 4K at 10-bit quality
• Backwards compatible with existing Thunderbolt hosts
• 16-channel embedded audio on SDI
• 8-channel embedded audio on HDMI
• DB-25 analog audio output connector
• XLR 12V power for battery or AC use
• RS-422 VTR control, Reference, LTC Input
• Headphone jack and level control for mobile environments

Tech Specs

Video Formats

SD:
• 525i 29.97
• 625i 25

HD:
• 720P 50, 59.94, 60
• 1080i 50, 59.94, 60
• 1080PsF 23.98, 24, 25, 29.97, 30
• 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

2K:
• 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 2048 x 1080PsF 23.98, 24, 25, 29.97, 30

4K:
• 3840 x 2160P 23.98, 24, 25, 29.97, 30
• 3840 x 2160PsF 23.98, 24, 25
• 4096 x 2160P 23.98, 24, 25, 29.97, 30
• 4096 x 2160PsF 23.98, 24, 25

Video Input
• 3G/SD/HD SDI, SMPTE-259/292/296/424, 8 -or 10-bits
• Single Link 4:2:2 or 4:4:4 (1 x BNC)
• Dual Link HD 4:4:4 (2 x BNC)
• 2K HSDL (High Speed Data Link) 4:4:4, (2 x BNC)
• 4K/QuadHD 4:4:4 (4 x BNC)
• HDMI v1.4
– 30/36 bits/pixel, RGB or YUV, 2.25Gbps.
– SD, HD, 1080p-50/60, 4K, 2K and stereoscopic HD support

Video Output
• 3G/SD/HD SDI, SMPTE-259/292/296/424, 8 -or 10-bits
• Single Link 4:2:2 or 4:4:4 (1 x BNC)
• Dual Link HD 4:4:4 (2 x BNC)
• 2K HSDL (High Speed Data Link) 4:4:4, (2 x BNC)
• 4K/QuadHD 4:4:4 (4 x BNC)
• HDMI v1.4
– 30/36 bits/pixel, RGB or YUV, 2.25Gbps.
– SD, HD, 1080p-50/60, 4K, 2K and stereoscopic HD support

Audio Input Digital
• 16-channel, 24-bit SDI embedded audio, 48kHz sample rate, Synchronous
• 8-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous

Audio Output Digital
• 16-channel, 24-bit SDI embedded audio, 48kHz sample rate, Synchronous
• 8-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous

Audio Output Analog
• 8-channel, 24-bit D/A analog audio, 48kHz sample rate, balanced (via 8 x XLR on DB-25 breakout cable)
• +24dbu Full Scale Digital (0dbFS)
• +/- 0.2db 20 to 20kHz Frequency Response

Downstream Keyer
• Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte.

4K/UHD Down-Conversion
• Real time, dedicated 4K down-conversion output (1 x BNC)
• 4K to 2K down-conversion
• UltraHD to HD down-conversion

Reference and LTC I/O
• 1x BNC LTC Output
• 1 x BNC assignable to Reference video or LTC input

Reference:
• Analog Color Black (1V) or Composite Sync (2 or 4V)
• Non-terminating

Physical
• Interface: Thunderbolt 2 (2 x)
• Power: 10-20V, 30-60W*
