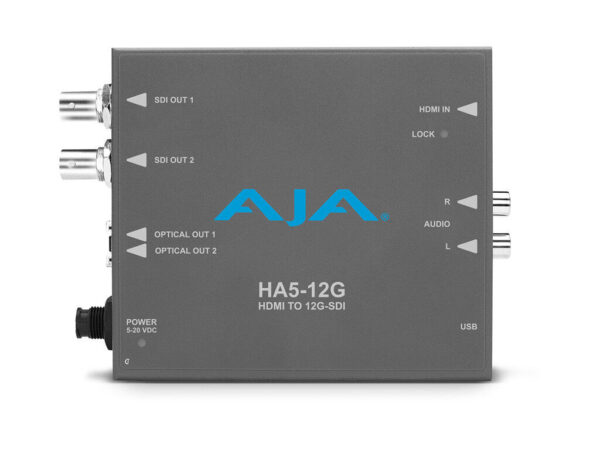

AJA HA5-12G Converter
AJA’s HA5-12G allows users to convert an HDMI 2.0 input to two 12G-SDI single link outputs. It includes two SDI DA outputs and transmits 12G-SDI on each SDI link, reducing cable runs when transporting 4K/UltraHD SDI. HA5-12G supports up to 8-Channels of audio from the HDMI source or 2-Channel analog audio (RCA), with eight or two channels of digital embedded audio on 12G-SDI.
Fiber SFP equipped HA5-12G models are available (please see separate listings), including the HA5-12G-T single channel transmitter, which extends HDMI source 4K signals over long distances (10 km Single Mode). The HA5-12G-2T dual channel transmitter offers two 12G-SDI coaxial outputs and two 12G-SDI over Fiber outputs to simultaneously enable HDMI 4K source extension to multiple locations without a distribution amplifier.
Features
• Converts HDMI 2.0 to 12G-SDI, up to 4K 60p
• Supports up to 60p input at 4:2:2/4:4:4/4:2:0
• Supports 2SI (two sample interleave) 4K/UltraHD SDI mapping
• Two 12G-SDI outputs
• Embedded audio can be selected from the HDMI or Analog audio inputs
• Fiber SFP models available
• Configure via USB port and supplied Mini-Config software
• Uses 5-20 VDC power (DWP-U-R1 universal power supply included)
• Five year warranty
HDR
HDR, or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.
HA5-12G provides this support for your 4K/UltraHD/HD HDR pipelines to HDMI compatible displays by generating HDR metadata in accordance with HDMI v2.0b/CTA-861-G. HA5-12G also provides support for Hybrid Log Gamma (HLG) HDR displays over HDMI.
4K and UltraHD
Typical 4K signals use a resolution of 4096 x 2160 pixels while UltraHD signals measure 3840 x 2160. This difference can prevent some monitors from being used either in full 4K workflows or in UltraHD workflows. HA5-12G can compensate for these resolution differences, allowing UltraHD monitors to be used in 4K productions and vice versa.
HA5-12G also supports High Frame Rate (HFR) inputs. 4K/UltraHD signals at 50 or 60 fps can be fed into HA5-12G and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.
12G-SDI Support
The 12G-SDI input on HA5-12G allows extremely high quality signal representation through to the HDMI output for use with large raster and deep color workflows where image quality is critical.
Audio Integration
Up to 16-Channels of embedded SDI audio are supported on input and can be passed to 8-Channel of embedded HDMI audio on the output with the ability to delay the audio from 0 to 7 frames for proper synchronization with the output video. Two channels of analog audio output allow direct external monitoring without the need to disembed the audio separately.
DSLR support
HA5-12G accepts progressive standard definition signals at 525p and 625p for compatibility with DSLR cameras, allowing the signal from those cameras to be easily incorporated into SDI workflows.
Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
AJA Quality – Guaranteed
All AJA Mini-Converters are covered by a five year warranty and AJA’s advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.
Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.
