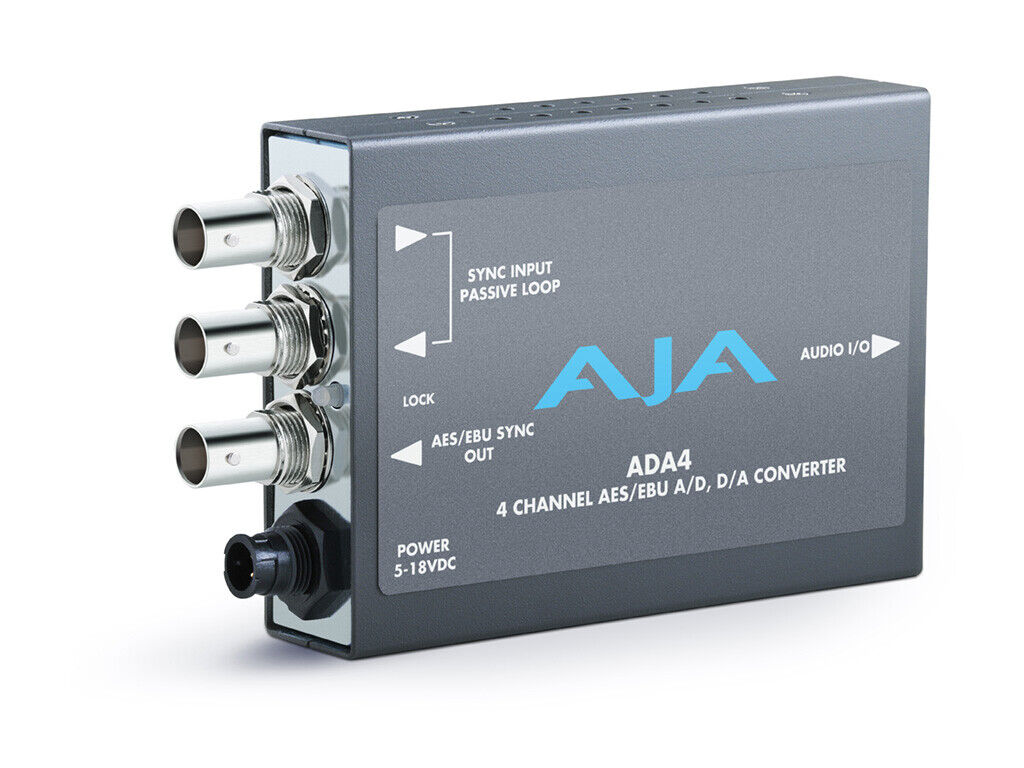

AJA ADA4
4-Channel Bi-directional Audio A/D and D/A Converter
The ADA4 is a 4 channel converter which can be configured as a 4 channel A/D, a 4 channel
D/A, or 2 channel A/D and 2 channel D/A. The ADA4 can accept a Wordclock or video sync/color black reference input for synchronization. Reference input and synchronization is automatic. Audio levels are configurable via dipswitch control.
Features:
• 4 Channel AES Audio Converter
• 4 Channel Balanced Analog Audio I/O
• Balanced AES I/O
• Supplied XLR breakout cable
• Wordclock/Video Reference I/O
• Dipswitch configuration
• 5-18VDC Power
• 5 year warranty
Specifications:
• Analog Audio I/O: Balanced, XLR
• AES Audio I/O: Balanced 110 ohm, XLR
• Audio Levels: +24dbu, +18dbu, +14dbu (Full Scale Digital)
• Audio Converters: 24 bit, 48/96 KHz
• User Controls: (External Dipswitch)
– Channel 1/2: A/D, D/A
– Channel 3/4: A/D, D/A
– Audio Level: Pro/Consumer
– Audio Level: High/Low
• Size: 5.8” x 3.1” x 1” (147 x 79 x 25 mm)
• Power: +5-18VDC, 3 watts.
Die Ware ist
original verpackt und wird mit Rechnung und ausgewiesener
Mehrwertsteuer versendet. Diese Hardware ist Umtausch- und
Rückgaberecht ausgeschlossen.
